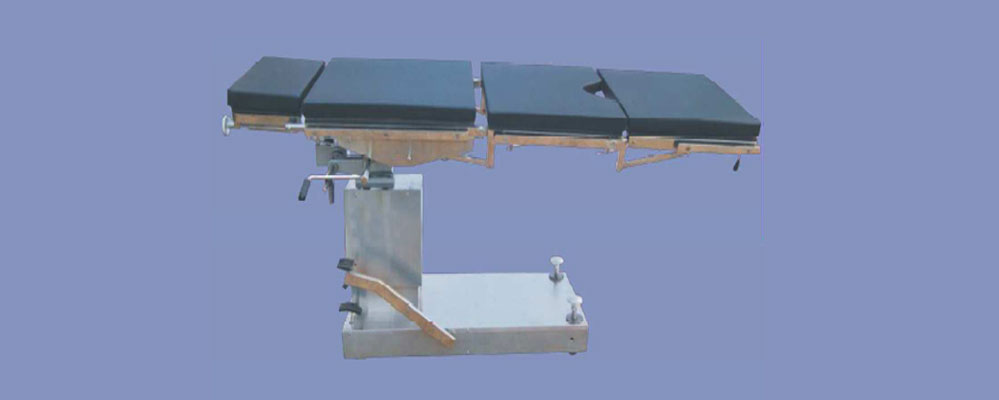

General features of Manually Operated Autoclaves :

• C-ARM compatible operating table , Four section X-Ray permeable top , Perineal cut ,
• Detachable leg section which can be fitted onto head section, Provided with mattress.
• Specifications:
• Dimension:
• 1910x 530 mm (+/-10 mm), Height: 785-1040 mm(+/-12mm) ,Trendlenburg’s
• position:40 deg (+/- 3 deg), Reverse Trendlenburg’s position: 25 deg (+/- 3 deg) , Lateral tilting
• position: 20 deg either side (+/- 2deg), Lifting position: 225 mm(+/-12mm) Flex position:30 degree, Reflex position: 220 degree,
• Standard Accessories:
• Screen frame with clamp; 1 PC,Shoulder-rest with pad and clamp- 1 pair,
• Body horn with pad and clamp-1 pair, Arm-rest with clamp-1 pc, Lithotomic strips with clamp-1 pair. Kidney bridge
• lifting -150 mm (+/-5mm) Leg section 90 degree down
